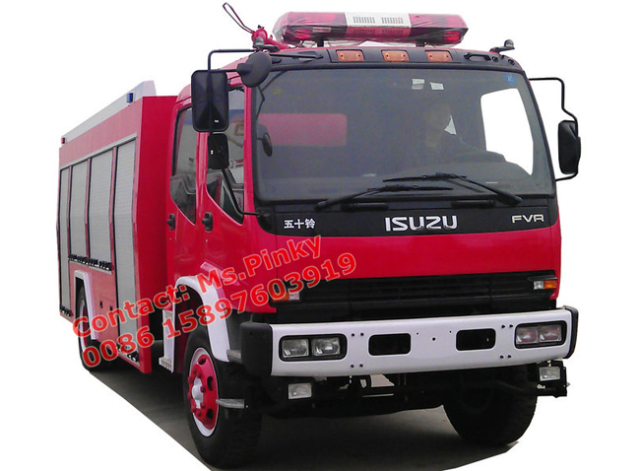

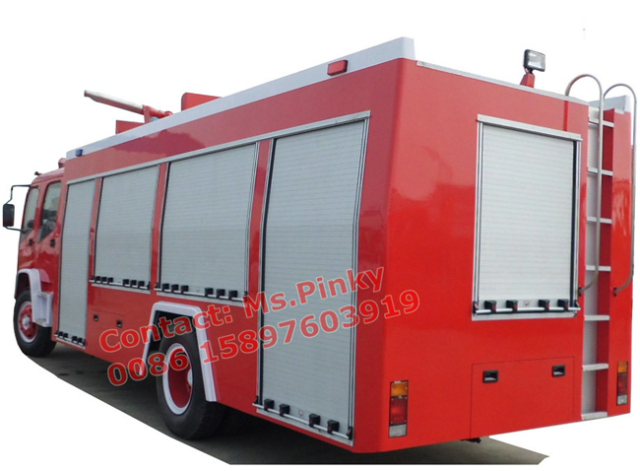

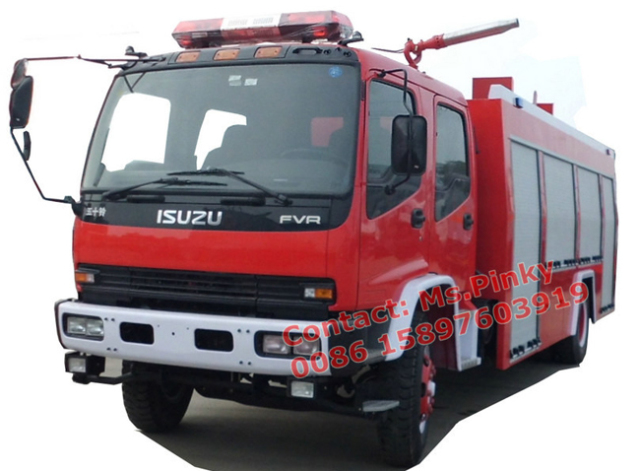

Fire Truck |
|||
|
Chassis Model /Manufacturer |
ISUZU QL1150WQFR |
||
|
cab |
Double cabin (four doors ) |
||
|
Overall Dimension |
9600×2500×3920mm |
||
|
Total Mass |
20,290Kg |
||
|
Rated Payload |
10000Kg |
||
|
Kerb Weight |
9900Kg |
||
|
Engine |
Model/Rated Power |
6HK1-TCNG40 Euro 4 |
|
|
|
Displacement/ power |
7790/178kw （240HP） |
|
|
|
Emission Standard |
Euro Ⅲ |
|
|
|
manufacturer |
ISUZU motor Co., Ltd. |
|
|
|
Diesel 4-stroke, 6-cylnder in line with water cooling, turbo charging |
||
|
driving type |
4*2 |
||
|
Wheel base |
4500mm |
||
|
Front axle |
6.3T front axle |
||
|
Rear axle |
13T rear axle |
||
|
Steering |
Power steering |
||
|
Cultch |
Single dry iaphragm spring cultch |
||
|
Brake system |
Air brake, exhaust brake、air cut brake |
||
|
Gear box |
ISUZU MLD six forwards |
||
|
Number of leaf spring of suspension |
9/14 |
||
|
Type & Size of Tyre |
10.00-20 |
||
|
technical parameter of fire fighting body |
|||
|
Liquid tanker |
Volume: total 5000L, water: 5000L Material: high quality carbon steel plate, anti-rust treatment inside. Structure: welding, there is baffle plate inner. Equipment: 1 manholes, with speediness lock and turn on equipment. 1 overflow mechanisms 1 drainage exits |
||
|
Fire fighting pump and pipeline system |
Model of Fire fighting pump: CB10/40 Pressure: 1.0Mpa Flux: 40L/s Suction depth: ≥7m Suction time: ≤35s Installing type: central or rear Pipeline system: Suction pipeline: there is Ø125mm water inlet, can sop natural water source and sop the water from liquid tanker. Water outlet pipeline: there is one middle pressure water outlet on every side, and gun pipeline with dia.≥80mm on the top of tanker. Discharge remaining water system: to protect pump and all ball valves, |
||
|
Fire fighting monitor |
Model: PP32 Range: water≥50m foam≥45m Pressure: 1.0Mpa. |
||
|
PTO |
sandwich PTO, splashing-type lubricate, can put out fire when driving. |
||
